CNCLR-260 Door Slab Machining Centre

DOOR SLAB MACHINING CENTRE

MODEL CNCLR-260

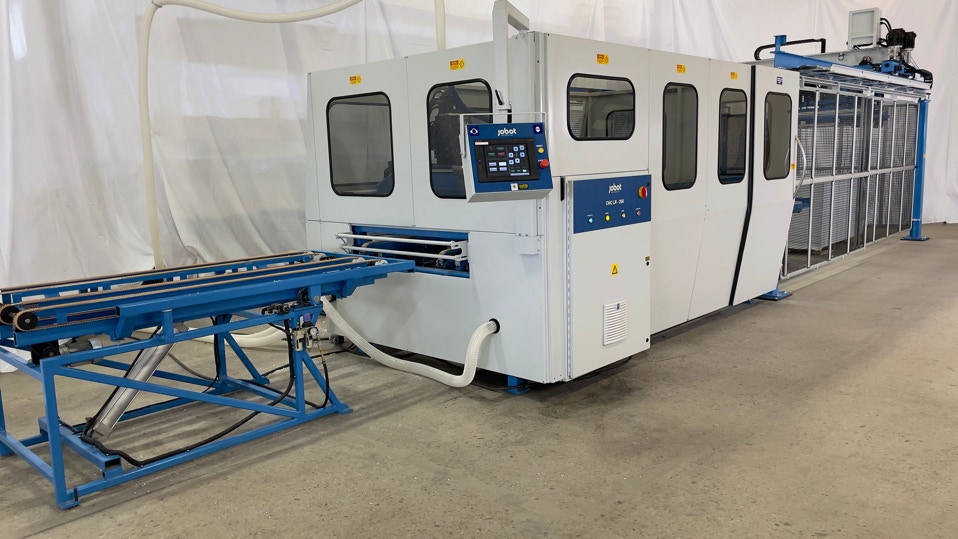

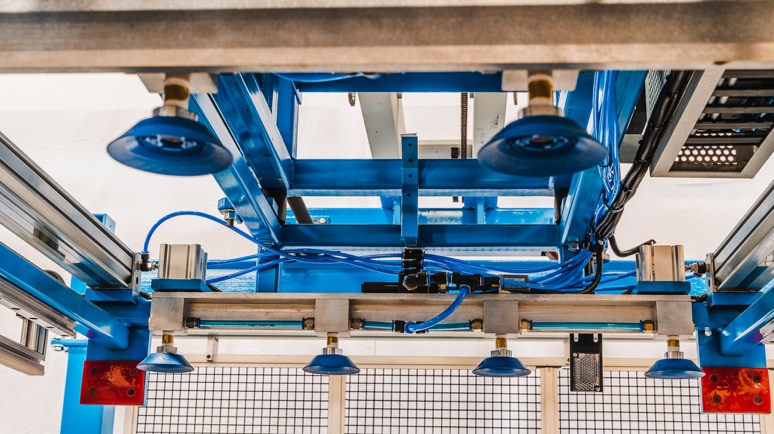

JoBot’s fully enclosed, 10-axis CNC Door Machining Centre offers 360 degrees of safety. To fully automate your process, add the Door Slab Picker/Loader, JoBot Model DHS-3.

• MULTI-OPERATIONAL
• TIME-SAVING AUTOMATIC TOOL CHANGER
• QUICK, CLEAN AND PRECISE
• LASER MEASURED PROCESSING

FEATURE DETAILS

MULTI-OPERATIONAL

Capable of processing three simultaneous operations:

1. Side Lock Operations include standard double boring with latch preparation and complete multipoint lock preparation
2. Side Hinge Operations includes pocket preparation for radius and non-radius hinges, and screw pilot holes
3. Top Cutout Operations include complete panel cut-out with the ability to process multi-point handle position and pilot hole. The scrap conveyor belt quickly removes cut-out panels.

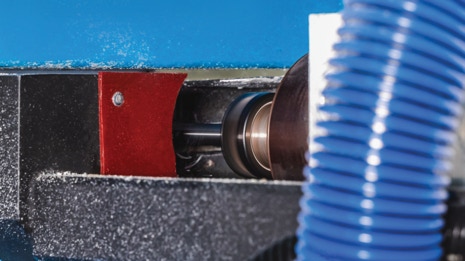

LOCK STILE HEAD for multipoint and latch preparation

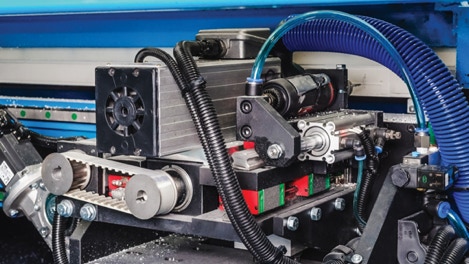

HINGE STILE HEAD

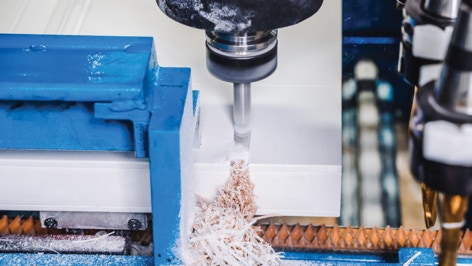

AUTOMATIC DOOR HEIGHT CUTTING

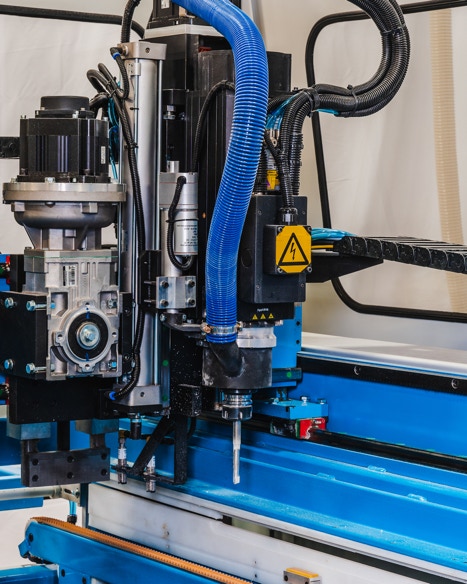

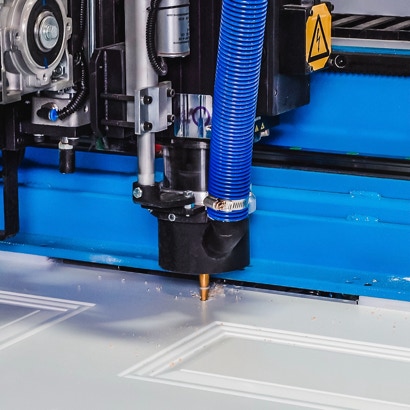

TOP-SIDE CUTOUT AND BORING HEAD

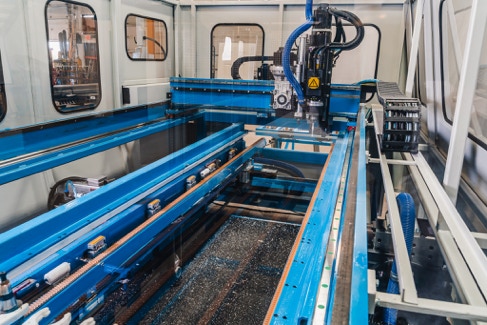

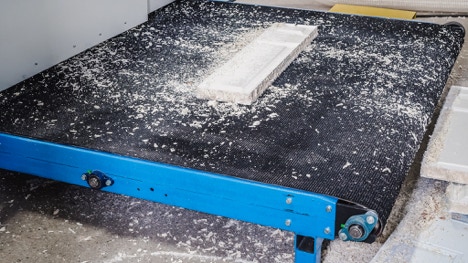

SCRAP CONVEYOR BELT easily removes cutout panels

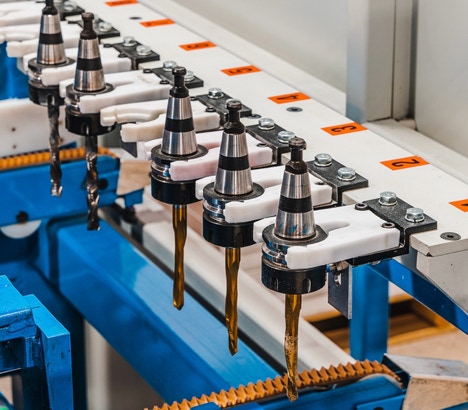

AUTOMATIC TOOL CHANGER

• 10-station tool changer automatically detects and replaces dull router bits
• Tool change occurs when next slab advances, resulting in no loss in production time

CLEAN AND PRECISE

• Each cutting head has its own designed dust collection pick up points

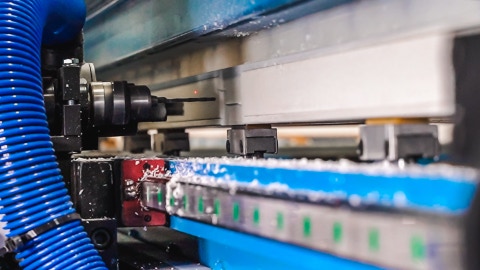

LASER MEASURED PROCESSING

• Laser measured processing depth distance for hinge preparation

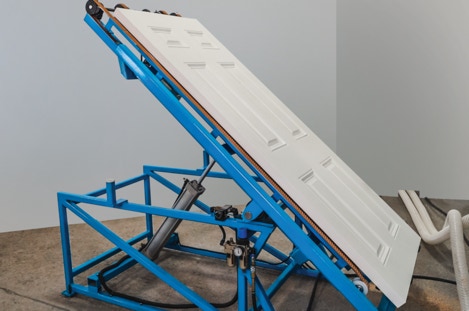

EXIT SLAB UPRIGHT TABLE quickly and efficiently removes completed slabs

TECHNICAL SPECIFICATIONS

• SIZE: HEIGHT: 9’

WIDTH: 11’1”

LENGTH: 12’6”

WEIGHT: 5000 LBS

• POWER REQUIREMENTS: 220V, 3PH, 80A
